MECHANISMS

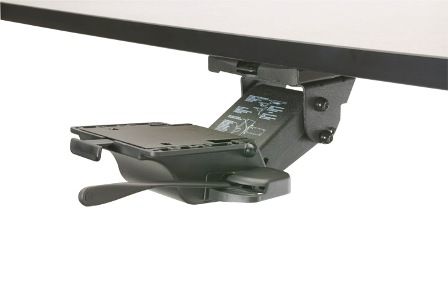

AM01  Mechanism with Leverlock handle design allows for height adjustment range of 6", +/- 15 degree tilt with finger tip pull release.  Retractable on a low profile ball-bearing 17" track.

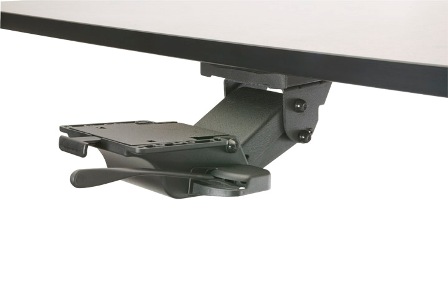

AM21  Mechanism with Leverlock handle design allows for height adjustment range of 6", +/- 15 degree tilt with finger tip pull release.  Retractable on a 17" glide track.



 NEW PHOTOS/AM17.jpg

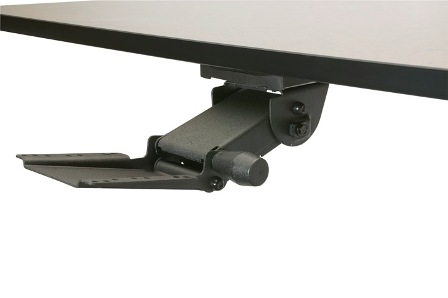

AM17  Low profile mechanism, Lift & Lock design allows for height adjustment without any levers or knobs. Height adjustment range of 8-1/4" (3" up, 5-1/4" down), +/- 15 degree tilt. Retractable on a 21" glide track.

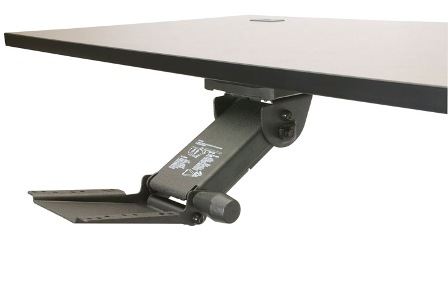

AM19  Low profile extended mechanism, Lift & Lock design allows for height adjustment without any levers or knobs. Height adjustment range of 10-3/4" (4" up, 6-3/4" down), +/- 15 degree tilt. Retractable on a 23" glide track.

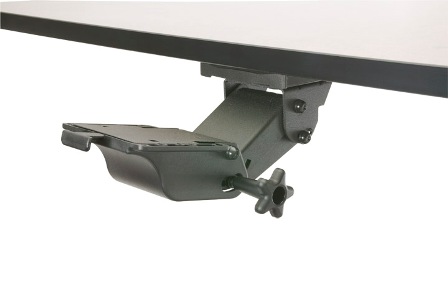

AM33  Fixed mount mechanism. Height adjustment range of 6", +/- 15 degree tilt with finger tip pull.





AM27  Low profile Dial-a-Tilt mechanism, Lift & Lock design allows for height adjustment without any levers or knobs. Height adjustment range of 8-1/4" (2-1/2" up, 5-3/4" down).  Dial-a-Tilt design with height and tilt indicator allows ease of tilt adjustment of +10/-15 degrees. Retractable on 21" glide track.

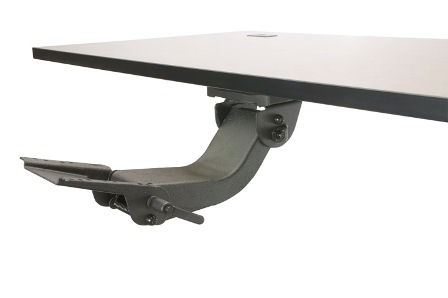

AM57  Extended range mechanism, Lift & Lock design allows for height adjustment without any levers or knobs.  Height adjustment range of 6" above & 6" below surface, +/- 15 degree tilt.  Retractable on 21" glide track.

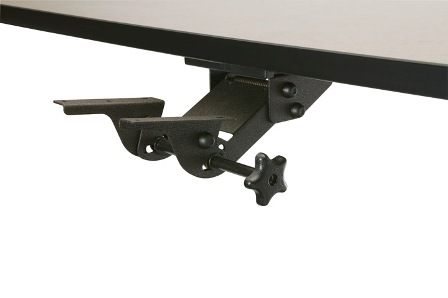

AM15  Economy mechanism, Single knob operation for a height range of 5-3/4" +/- 15 degree tilt. Retractable on a 18" glide track.

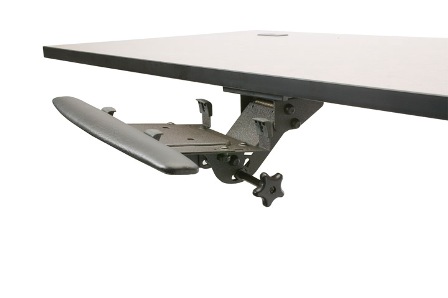

AM34  Clamp mount tray with AM15 adjustable mechanism.  Single knob operation for a height range of 5-3/4" +/- 15 degree tilt. Retractable on a 18" glide track, standard with black vinyl wrist rest.

Visit Platform page to complete the keyboard by attaching to these mechanism.
